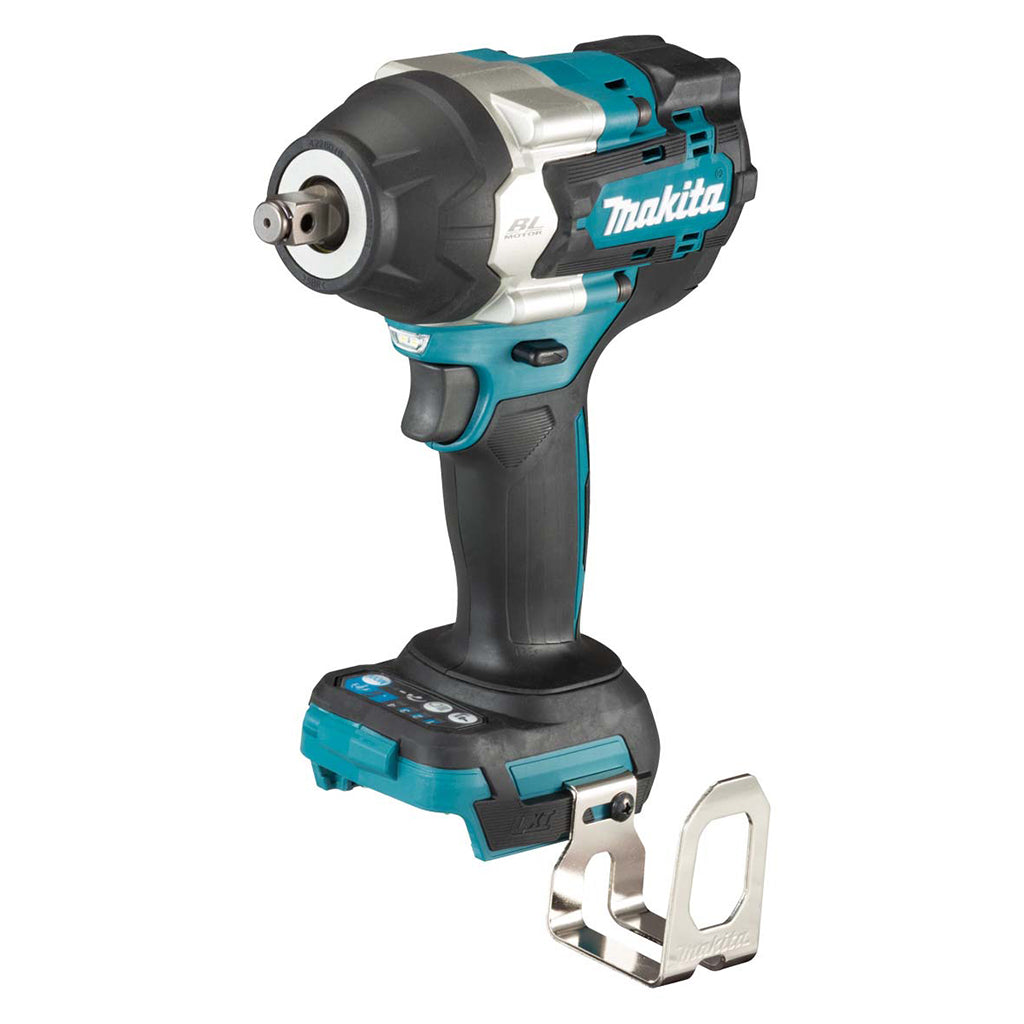

Makita 18V Brushless 1/2" Impact Wrench Skin Only DTW700Z

• The DTW700Z is designed to suit the needs of manufacturing technicians, mechanics and fabricators.
• It has an efficient Makita Brushless Motor, providing powerful torque in a compact design.

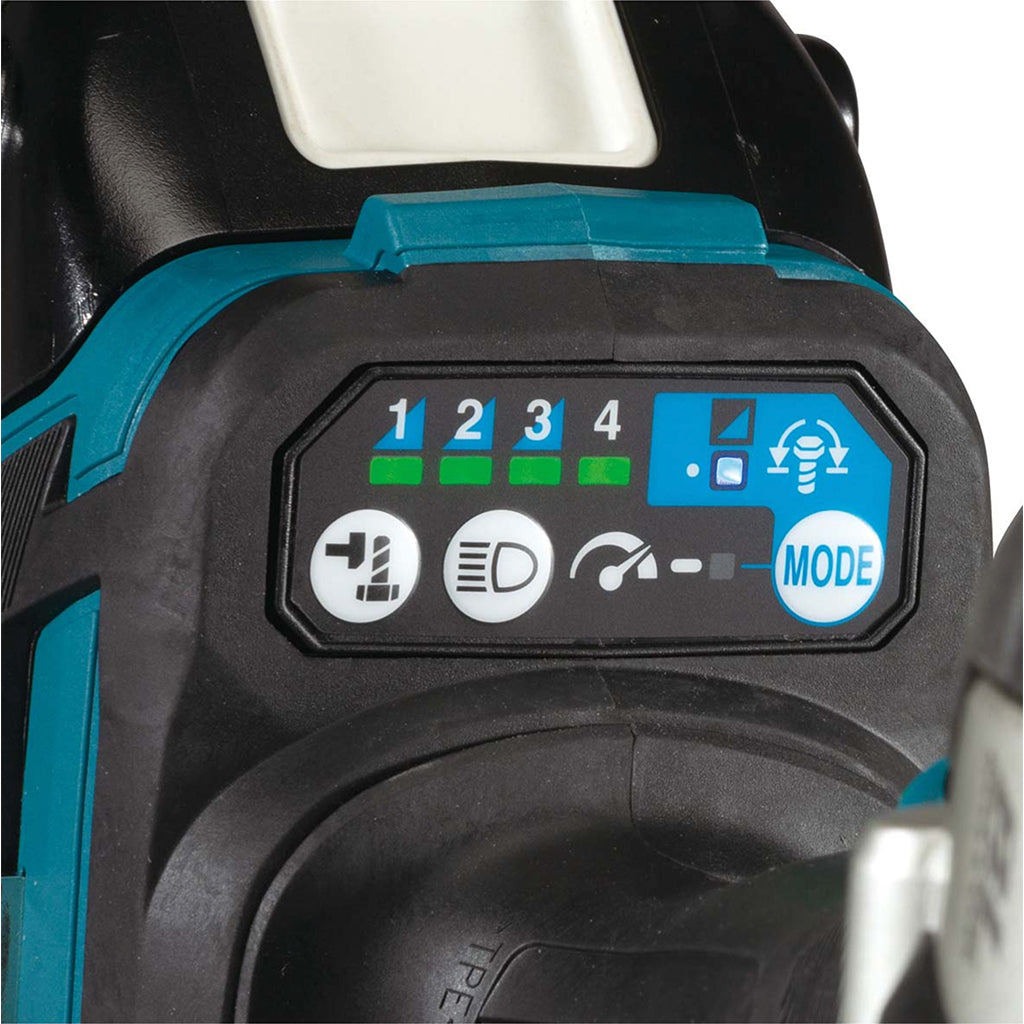

• It features 4 stage power selection, increasing versatility and allowing the user to select the optimum rpm and fastening torque for the task at hand.
• It also features a forward and reverse automatic stop function, with 6 modes optimised for fastening applications, providing the user with more control during use.

Features:

• Compact design for comfortable handling at only 170mm in length.
• 4 Stage power selection for optimum rpm and fastening torque.
• Maximum nut busting torque of 1,000Nm with 700Nm max. fastening.
• Unique rubber joint suppress vibration to battery terminals.
• Forward & reverse auto stop function, optimised for fastening applications.

Specifications:

• Drive Shank:  12.7mm (1/2”) Square
• Impact Rate: Max: 0 - 2,700ipm, Hard: 0 - 2,400ipm, Medium: 0 - 1,700ipm, Soft: 0 - 1,000ipm
• Max. capacities high tensile bolt: M10-M16
• Max. capacities standard bolt: M10-M24
• Max. fastening torque: Max: 700Nm, Hard: 320Nm, Med: 200Nm, Soft: 150Nm
• No Load Speed: Max: 0 - 2,200rpm, Hard: 0 - 1,900rpm, Medium: 0 - 1,200rpm, Soft: 0 - 500rpm
• Nut busting torque: 1,000Nm
• Overall Length: 170MM
• Skin weight: 2.1kG
• Voltage: 18V

Documents View:

Information Booklet

Product Manual

Parts Diagram
