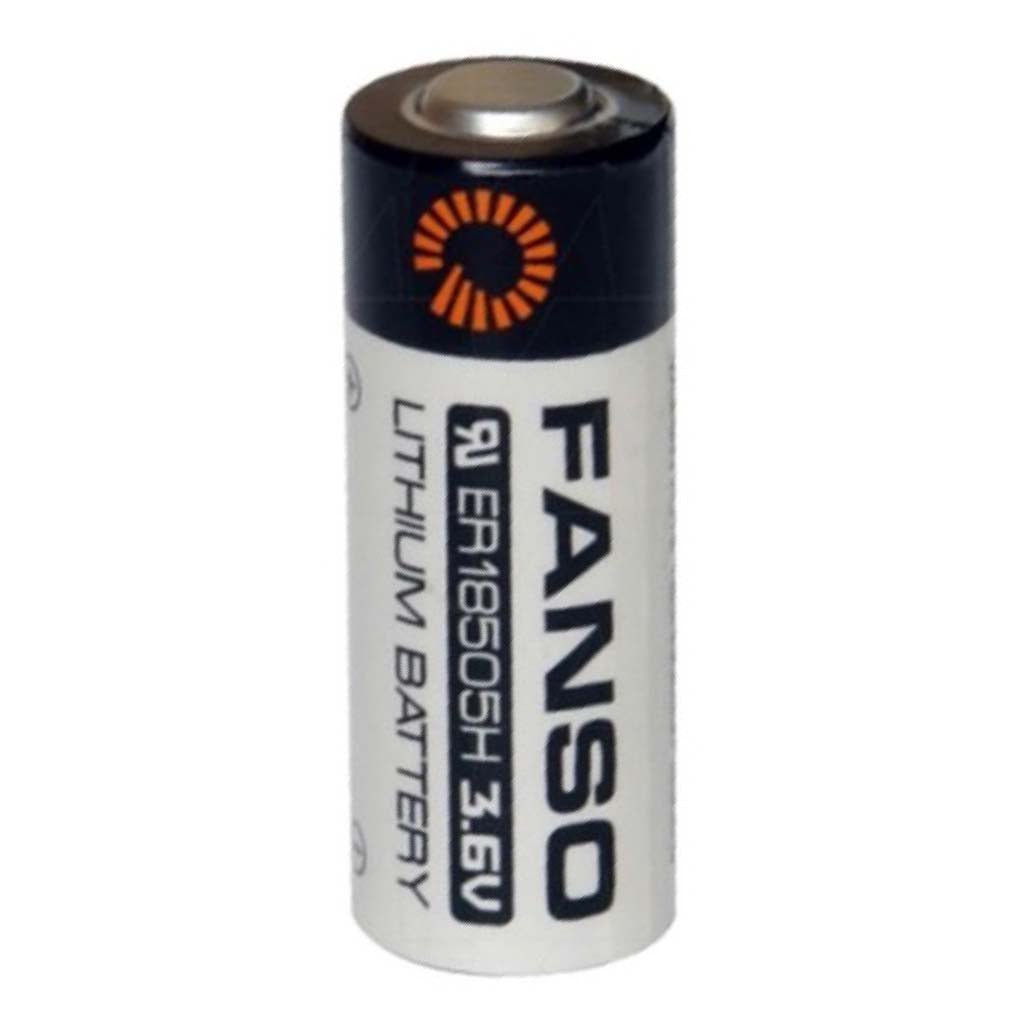

FANSO FAT A High Capacity Lithium Thionyl Chloride Battery 3.6V 4000mAh ER18505H

• Long shelf life: self discharge rate less than 1% at 25°C.
• High energy density (700Wh/kg).
• Long operating life.
• Stainless steel container and end caps.
• Wide temperature range: -55ºC ~ +85ºC.
• Hermetic glass-to-metal sealing.
• Non-flammable electrolyte.
• Compliant with IEC86-4 safety standard.
• UL Component Recognition MH46165.
• High and stable operating voltage.

Suitable for applications including:

• Utility metering
• Alarm and security devices
• Memory backup power
• Professional electronics
• GPS tracking system
• Military system
• Automotive electronics
• Real-time clock

Specifications:

• Application:  Memory Back Up (MBU)
• Chemistry: Lithium Thionyl Chloride
• Voltage: 3.6V
• Watt Hour: 14.4Wh
• Nominal Capacity: 4Ah
• Maximum Continuous Discharge Current: 70mA
• Maximum Pulse Discharge Current: 180mA
• Size: FAT A
• Width: 18.5mm
• Height: 50.5mm
• Weight: 28g

Data Sheet
