suttontools | SKU:
M1011000

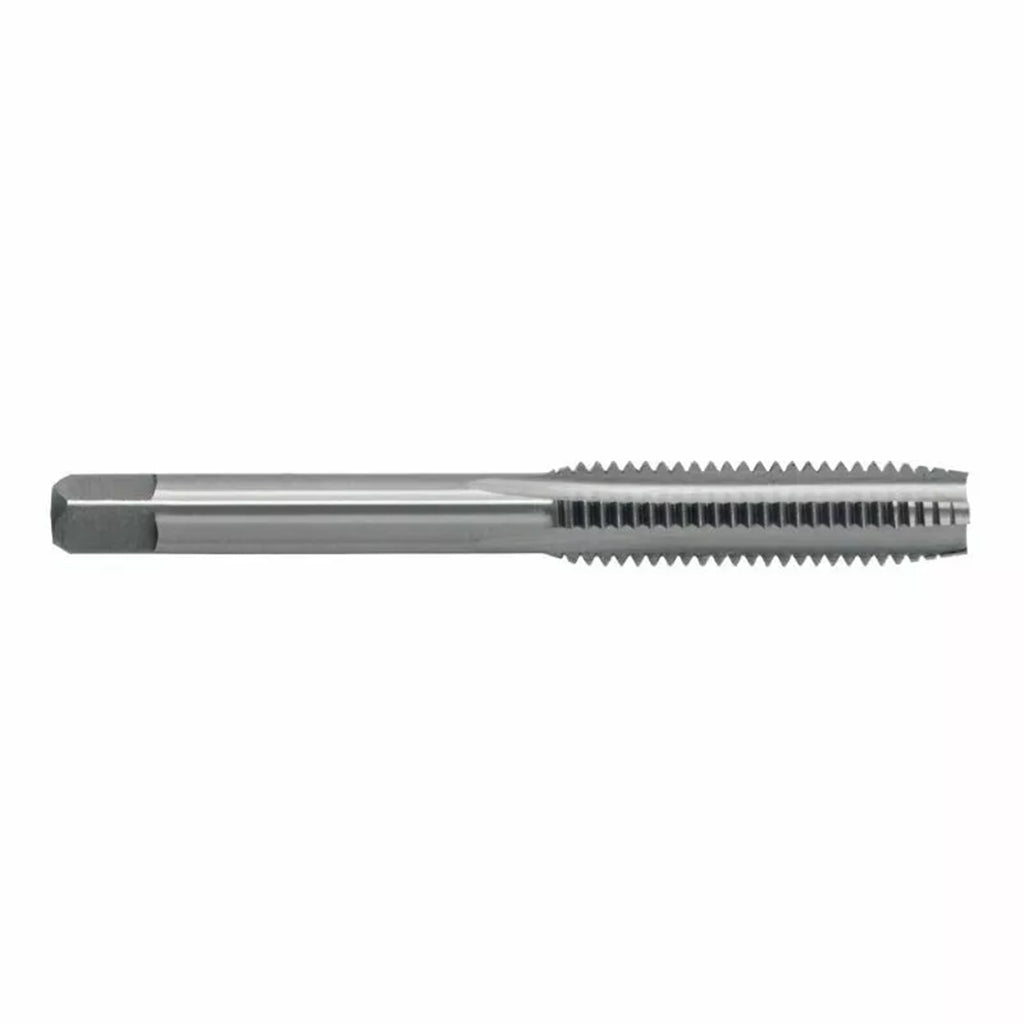

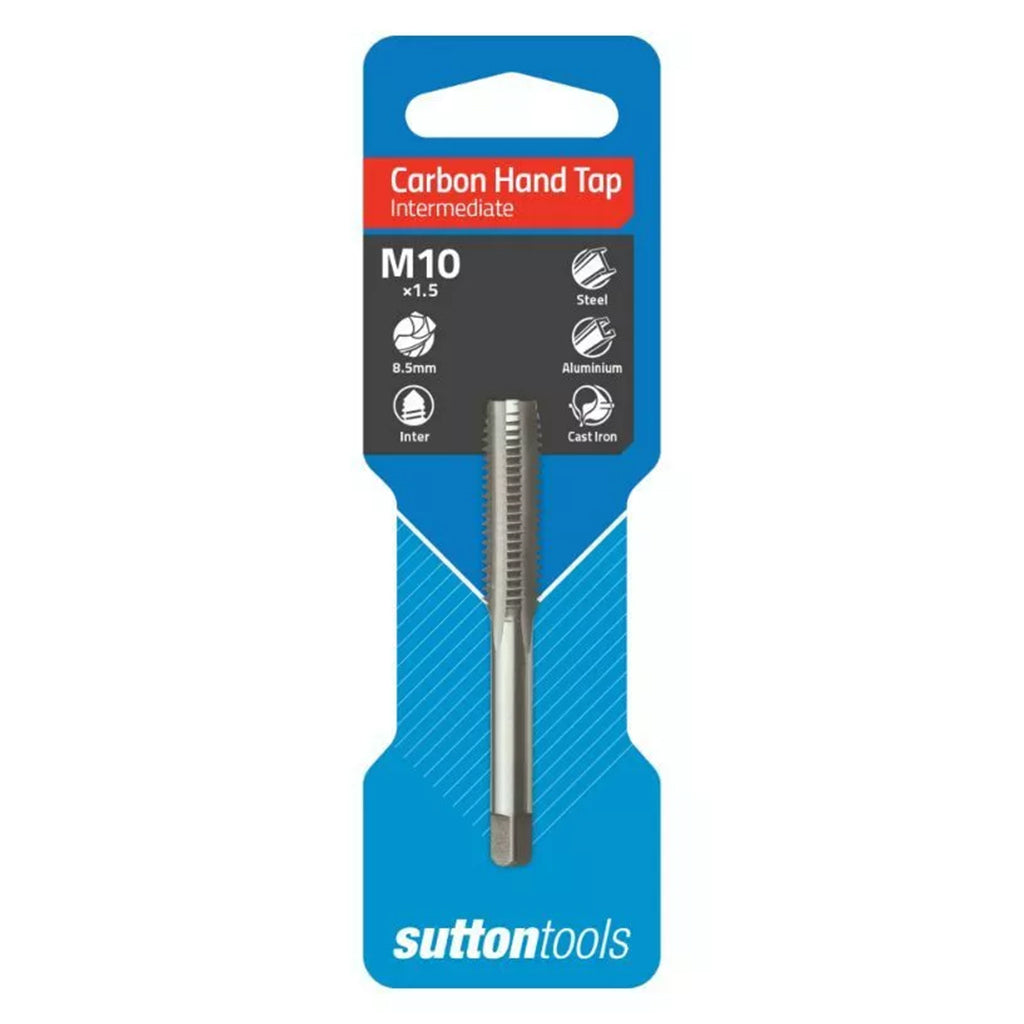

Suttontools M10x1.5 Intermediate Hand Tap M1011000
$26.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Suttontools M10x1.5 Intermediate Hand Tap M1011000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Suttontools M10x1.5 Intermediate Hand Tap M1011000
$26.00
Unit price
/
Unavailable
- Ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
- Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
- Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
Features:
- Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter.
- Intermediate lead: used after a taper lead tap and are suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole.
- Square shank for use with a suitable tap wrench to drive the tap.
- Made from tungsten chrome alloy.
- Bright finish for general purpose applications, non-ferrous metals & plastics.
Specifications:
- Drill Dia: 8.5mm
- Pitch: 1.50
- Size: M10
- Designation: N
- Material: TCA
- Finish: Brt
- Max Cut Depth: 1.5xD
- Shank Form: A
- Type: Straight Flute
- Thread Form: M
- Lead: Intermediate
-
